aimmd.distributed.CommittorSimulation

This notebook showcases how to steer a complete CommittorSimulation from python.

This notebook should be run on a multi-core workstation preferably with a GPU, otherwise you will have a very long coffee break and a very hot laptop.

Required knowledge/recommended reading: This notebook assumes familiarity with the GmxEngine/SlurmGmxEngine and the TrajectoryFunctionWrappers from the asyncmd module. Please have a look at the documentation/examples there.

Imports and working directory

%%bash
# if using the module system to make gromacs and friends available:
# check that they are loaded!
#module list

%%bash
# unix only, check that gmx is available
which gmx

/Modules/Data/gromacs/install/2022.4/bin/gmx

%matplotlib inline

import os
import asyncio
import matplotlib.pyplot as plt
import numpy as np
import MDAnalysis as mda

/home/tb/hejung/.conda/envs/aimmd_distributed_devel/lib/python3.10/site-packages/tqdm/auto.py:22: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

import asyncmd
import asyncmd.gromacs as async_gmx
import aimmd
import aimmd.distributed as aimmdd

Could not initialize SLURM cluster handling. If you are sure SLURM (sinfo/sacct/etc) is available try calling `asyncmd.config.set_slurm_settings()` with the appropriate arguments.
Tensorflow/Keras not available

# setup working directory

#scratch_dir = "."
scratch_dir = "/homeloc/scratch/aimmd_distributed/"

workdir = os.path.join(scratch_dir, "Committors_test")

if not os.path.isdir(workdir):
    os.mkdir(workdir)

Setup logging (optional)

Note that this is entirely optional, i.e. you can skip the next 3 cells if you like. However for now we want the loglevel to be ‘INFO’ to see everything/most of the stuff that is done (and possibly goes wrong).

# setup logging
# executing this file sets the variable LOGCONFIG, which is a dictionary of logging presets
%run ../resources/logconf.py

# have a look at the default logging level (the level used for the root logger)
print(LOGCONFIG["loggers"][""])
# have a look at the logger for aimmd
print(LOGCONFIG["loggers"]["aimmd"])
# and have a look at the log-level for the filehandler
print(LOGCONFIG["handlers"]["stdf"])
# the last two should both be `INFO`

{'level': 'WARN', 'handlers': ['stdf', 'warnout']}
{'level': 'INFO'}
{'class': 'logging.FileHandler', 'level': 'INFO', 'mode': 'w', 'filename': 'simulation.log', 'formatter': 'standardFormatter'}

# OPTIONAL: more logging
#LOGCONFIG["handlers"]["stdf"]["level"] = "DEBUG"
#LOGCONFIG["loggers"]["aimmd"]["level"] = "DEBUG"

# you can either modify single values or use it as is to get the same setup as in the OPS default logging config file
# you could e.g. do LOGCONF['handlers']['stdf']['filename'] = new_name to change the filename of the log
# the default is to create 'simulation.log' and 'initialization.log' in the current working directory
import logging.config
LOGCONFIG["handlers"]["stdf"]["filename"] = os.path.join(workdir, "simulation_committors.log")
LOGCONFIG["handlers"]["initf"]["filename"] = os.path.join(workdir, "initlog_committors.log")
logging.config.dictConfig(LOGCONFIG)

aimmd.distributed.CommittorSimulation setup

The CommittorSimulation is a python class to steer/control multiple molecular simulations at the same time. It takes a list of starting configurations and the states to then propagate the trajectories (usually in chunks of walltime) until any of the states is reached. It supports oneway and twoway shooting (the later not beeing a true committor simulation because forward and backwards trajectories are correlated) and is the highlevel user-facing object to perform committor simulations.

To initialize and run a CommittorSimulation you need:

• workdir: The toplevel directory the simulation will run in

• starting_configurations: A list, every entry in the list corresponds to one configuration and must be an iterable itself, the single list entry structure is: aimmd.distributed.Trajectory, index_of_conf_in_traj, name_for_configuration; Note that the name_for_configuration is optional and will be used only as the name of the (sub)folder in which the trials for that configuration will be performed, if no name is supplied the folder will simply be named configuration_$CONFNUM

• states: A list of state functions, preferably wrapped using a aimmd.distributed.TrajectoryFunctionWrapper

• engine_cls: The class of the molecular dynamics engine to use, should be a sublcass of aimmd.distributed.MDEngine

• engine_kwargs: A dictionary with keyword arguments that can/will be used to instatiate the molecular dynamics engine

• T: float, the temperature to use when generating random Maxwell-Boltzmann velocities

• walltime_per_part: float, (maximum) walltime per trajectory segment in hours; Note that this does not determine the total length of the trajectories but only the size of the single trajectory segments

• n_max_concurrent: int, the maximum number of trials to propagate concurrently; Note for two way simulations you will run 2*n_max_concurrent molecular dynamic simulations in parallel

• two_way: wheter to run molecular dymaics forward and backward in time

• max_steps: int or None, the maximum number of integration steps to perform in total per trajectory, i.e. for two way simulations the combined maximum length of the resulting trajectory will be 2*max_steps

Note that you can set all attributes of the CommittorSimulation (fname_traj_to_state, fname_transition_traj, deffnm_engine_out, etc.) at initialization time by passing them as keyword arguments with the respective values you want to use.

Also Note, that the CommittorSimulation is quite flexible and allows the simulation of different physical ensembles for every starting configuration. This is achieved by allowing the parameters engine_cls, engine_kwargs, T and twoway to be either single instances (i.e. using the same value for the whole committor simulation) or a list with the same length as starting_configurations (i.e. one value per starting configuration). This means you can simulate systems differing in the number of molecules (by changing the topology used in the engine), at different pressures (by changing the molecular dynamics parameters passed with engine_kwargs), at different temperatures (by changing T and the parameters in the engine_kwargs) and even perform two way shots only for a selected subset of starting configurations (e.g. the ones you expect to be a transition state).

If the CommittorSimulation options still are not flexible enough for your needs you can always use the asyncmd.trajectory.TrajectoryPropagatorUntilAnyState (which is used under the hood anyway) to implement your own committor simulation from scratch.

# import state functions
from state_funcs_mda import alpha_R, C7_eq

# and wrapp them
wrapped_alphaR = asyncmd.trajectory.PyTrajectoryFunctionWrapper(alpha_R)
wrapped_C7_eq = asyncmd.trajectory.PyTrajectoryFunctionWrapper(C7_eq)

# Load the transition to take initial configurations from
tp_traj = asyncmd.Trajectory(trajectory_files="gmx_infiles/TP_low_barrier_300K_amber99sbildn.trr",
                             structure_file="gmx_infiles/conf.gro")
print(f"The transition has a length of {len(tp_traj)} frames.")

The transition has a length of 102 frames.

# prepare a list of starting configurations
# we will take each frame of the transition once except the first and last frame (these are already inside the states)
# OPTIONAL: we will name each configuration 'frame$FRAMENUM_from_low_barrier_transition',
#           we could also just have used tuples of length 2: (traj, idx) and then every configuration would just get an index
starting_confs = [(tp_traj, i, f"frame{i}_from_low_barrier_transition") for i in range(5, len(tp_traj) - 1, 10)]
print(f"Selected {len(starting_confs)} frames as starting configurations.")

Selected 10 frames as starting configurations.

# have a look at the results of our state functions (note that the transition is from a slightly less strict alpha_R function)
await wrapped_alphaR(tp_traj)

array([ True,  True,  True,  True, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False])

await wrapped_C7_eq(tp_traj)

array([False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False,  True])

# engine_kwargs
gro = "gmx_infiles/conf.gro"
top = "gmx_infiles/topol_amber99sbildn.top"
ndx = "gmx_infiles/index.ndx"
mdp = async_gmx.MDP("gmx_infiles/md.mdp")

print(f"The reference temperature ('ref-t') in the mdp file is: {mdp['ref-t']}.")

engine_kwargs = {"mdconfig": mdp, "gro_file":gro, "top_file":top, "ndx_file":ndx,
                 #"mdrun_extra_args":"-nt 1",  # use this for GMX with (thread) MPI support
                 "mdrun_extra_args": "-ntomp 2",  # and this for GMX sans (thread) MPI support
                 "output_traj_type": "XTC",
                 }

# here we simply use the `singleton` options for all configurations,
# i.e. all molecular dynamics simulations of this committor simulation sample the same ensemble
simulation = aimmdd.CommittorSimulation(workdir=workdir,
                                        starting_configurations=starting_confs,
                                        states=[wrapped_alphaR, wrapped_C7_eq],
                                        engine_cls=async_gmx.GmxEngine,
                                        engine_kwargs=engine_kwargs,
                                        T=mdp["ref-t"][0],
                                        walltime_per_part=0.000015625,  # 0.055125 s per part
                                        #walltime_per_part=0.000125,  # 0.45 s per part
                                        #walltime_per_part=0.005,  # run in simulation parts of 18 seconds
                                        n_max_concurrent=10,  # start a maximum of 10 md engines engines (*2 if twoway!)
                                        ######################
                                        two_way=False,
                                        #########################
                                        max_retries_on_crash=5,  # maximum number of retries on crash, e.g. 5 means try at most 6 times
                                        )

The reference temperature ('ref-t') in the mdp file is: [300.0, 300.0].

print(mdp)

<class 'asyncmd.gromacs.mdconfig.MDP'> has been changed since parsing: True
Current content:
----------------
title : ['test']
cpp : ['/lib/cpp']
include : ['-I../top']
define : []
integrator : md-vv
dt : 0.002
nsteps : -1
nstxout : 0
nstvout : 0
nstlog : 0
nstxout-compressed : 20
nstlist : 50
ns-type : grid
cutoff-scheme : Verlet
rlist : 1.1
coulombtype : PME
rcoulomb : 1.1
rvdw : 1.1
tcoupl : v-rescale
tc-grps : ['Protein', 'SOL']
tau-t : [0.5, 0.5]
ref-t : [300.0, 300.0]
Pcoupl : C-rescale
tau-p : 1.0
compressibility : [4.5e-05]
ref-p : [1.0]
gen-vel : no
gen-temp : 300.0
gen-seed : 173529
constraints : h-bonds
continuation : yes

# now run the simulation for 20 shots per configuration
ret = await simulation.run(20)
# if there are errors below they probably stem from the fact that the transition contains 4 frames in alphaR (the state with index 0)
# therefore the TrajectoryPropagatorUntilAnyState raises an error and returns the starting configuration as a len 1 trajectory
# (the error is raised because usually something went wrong if the first frame already fulfills the stopping criteria)

Have a look at and plot the results

import matplotlib

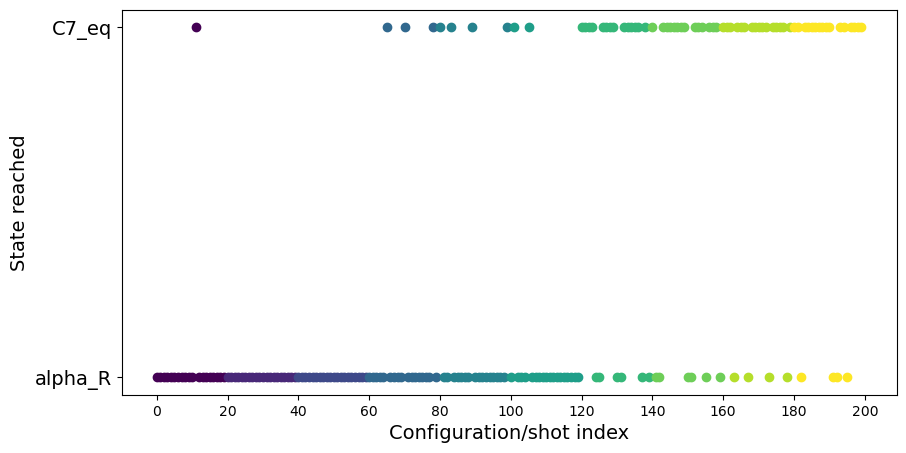

Plot results for every shot seperately, i.e. each result separately

fig, axs = plt.subplots(figsize=(10, 5))

# ret are the shooting results per stucture and shot, i.e. it has shape = (n_conf, n_shot, n_states)
# it is the same as `CommittorSimulation.states_reached_per_shot`
n_conf, n_shot, n_states = simulation.states_reached_per_shot.shape
xses_per_conf = np.arange(0, n_shot)
# get a colorbar and a normalize instance to have different colors for starting structure
cmap = matplotlib.cm.get_cmap("viridis")
norm = matplotlib.colors.Normalize(vmin=0, vmax=n_conf-1)

for cnum, conf in enumerate(ret):
    # NOTE: this only works if ret is per configuration and per shot, i.e. if it can only have one True value (one 1) per array in the last axis
    plot_vals = np.full((n_shot,), np.nan)  # fill with the plot values
    idxs, state = np.where(conf)  # will return the idxs of the shot and idx of the state each shot reached
    plot_vals[idxs] = state
    axs.scatter(x=xses_per_conf + (n_shot * cnum),
                y=plot_vals,
                color=cmap(norm(cnum)),
                )

axs.set_yticks([i for i in range(n_states)])
axs.set_yticklabels(["alpha_R", "C7_eq"], size=14)
axs.set_xticks([n_shot * i for i in range(n_conf + 1)])
axs.set_xlabel("Configuration/shot index", size=14)
axs.set_ylabel("State reached", size=14)

Text(0, 0.5, 'State reached')

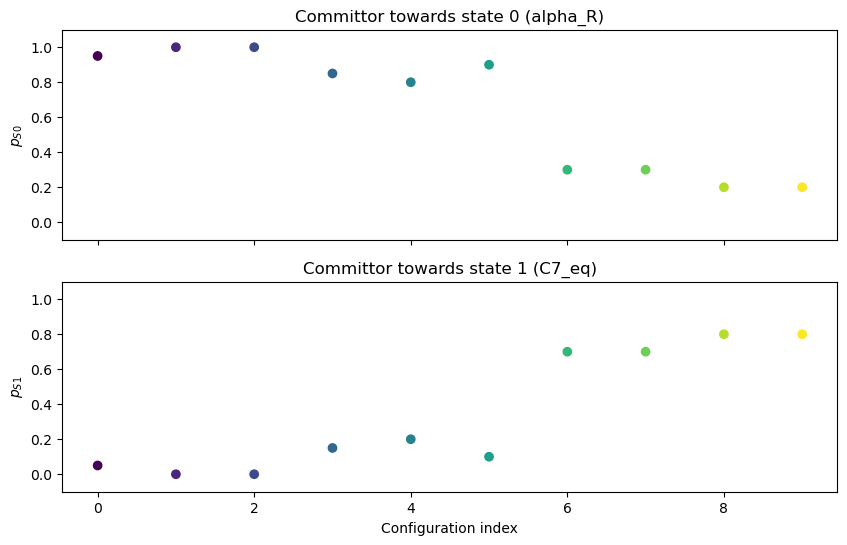

Plot committor estimates for every starting configuration, i.e. aggregated for every starting structure

fig, axs = plt.subplots(figsize=(10,6), nrows=n_states, sharex=True)
# states_reached already aggregates the result for the same starting configuration
# it therefore has shape = (n_conf, n_states)
n_conf, n_states = simulation.states_reached.shape
for snum, (ax, name) in enumerate(zip(axs, ["alpha_R", "C7_eq"])):
    ax.set_title(f"Committor towards state {snum} ({name})")
    ax.scatter(x=np.arange(n_conf),
               y=simulation.states_reached[:, snum] / np.sum(simulation.states_reached, axis=1),
               c=cmap(norm(np.arange(n_conf))),
               )
    ax.set_ylim(-0.1, 1.1)
    ax.set_ylabel(f"$p_{{S{snum}}}$")
    if snum == 1:
        ax.set_xlabel("Configuration index")

Add “backwards” shots to generate initial transitions

We will now add the conjugate “backwards” trials for the most promising configurations, i.e. thoose with shots that reached both states. To this end we will initialize a new committor simulation with only those configurations and use its reinitialize_from_workdir() method. We will set twoway=True to add the backwards shots for all of the configurations we now look at again. The CommittorSimulation will then add the missing backwards trials to all configurations it knows about. Note, that using a subset of the configurations only works since we named the configurations, if we had not done so we could still add the backwards shots, but would need to do so for all configurations (at least up to a given configuration number).

In addition to adding the missing backwards shots this will also write out any potentially generated transitions as one concatenated trajectory from the lower index state to the higher index state with the first and last frame in the states. Therfore the twoway shooting can be used to generate initial transitions for a subsequent transition path sampling simulation. Note however that this is usually only smart for configurations that have an roughly equal probability to reach both/multiple states, i.e. for potential transition states.

p_c7_eq = simulation.states_reached[:, 1] / np.sum(simulation.states_reached, axis=1)
confs_for_twoway = []
for sconf, p in zip(starting_confs, p_c7_eq):
    if 0.25 <= p <= 0.75:
        confs_for_twoway += [sconf]


print(f"Selected {len(confs_for_twoway)} promising configurations with p(TP|x) >= {round(2 * 0.25**2, 3)}.")

Selected 2 promising configurations with p(TP|x) >= 0.125.

new_simulation = aimmdd.CommittorSimulation(workdir=workdir,
                                            # take only a subset of the original starting configurations
                                            starting_configurations=confs_for_twoway,
                                            states=[wrapped_alphaR, wrapped_C7_eq],
                                            engine_cls=async_gmx.GmxEngine,
                                            engine_kwargs=engine_kwargs,
                                            T=mdp["ref-t"][0],
                                            walltime_per_part=0.000015625,  # 0.055125 s per part
                                            #walltime_per_part=0.000125,  # 0.45 s per part
                                            #walltime_per_part=0.005,  # run in simulation parts of 18 seconds
                                            n_max_concurrent=4,  # start a maximum of 8 md engines engines (*2 because we use twoway=True)
                                            # NOTE: we changed twoway=True
                                            two_way=True,
                                            max_retries_on_crash=5,  # maximum number of retries on crash, e.g. 5 means try at most 6 times
                                           )

# NOTE: we need to allow overwriting of the existing traj_to_state for the forward shot by passing overwrite=True
#       otherwise the reinitialization will fail when it tries to rewrite the forward traj_to_state
#       (we could have also changed the filenames for the concatenated trajectory output)
ret = await new_simulation.reinitialize_from_workdir(overwrite=True)

Accessing the generated trajectories

The concatenated trajectories until a state is reached and the potentially generated transition trajectories are all inside the respective shot_$SHOTNUM folders, however they can also be accessed from python via the properties CommittorSimulation.trajs_to_state, CommittorSimulation.trajs_to_state_bw and CommittorSimulation.transitions.

# show only the traj_to_state for first configuration this simulation knows about
new_simulation.trajs_to_state[0]

[Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_0/traj_to_state.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_0/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_1/traj_to_state.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_1/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_2/traj_to_state.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_2/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_3/traj_to_state.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_3/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_4/traj_to_state.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_4/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_5/traj_to_state.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_5/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_6/traj_to_state.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_6/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_7/traj_to_state.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_7/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_8/traj_to_state.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_8/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_9/traj_to_state.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_9/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_10/traj_to_state.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_10/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_11/traj_to_state.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_11/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_12/traj_to_state.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_12/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_13/traj_to_state.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_13/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_14/traj_to_state.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_14/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_15/traj_to_state.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_15/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_16/traj_to_state.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_16/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_17/traj_to_state.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_17/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_18/traj_to_state.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_18/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_19/traj_to_state.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_19/trial_fw.tpr)]

# same here
new_simulation.trajs_to_state_bw[0]

[Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_0/traj_to_state_bw.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_0/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_1/traj_to_state_bw.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_1/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_2/traj_to_state_bw.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_2/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_3/traj_to_state_bw.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_3/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_4/traj_to_state_bw.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_4/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_5/traj_to_state_bw.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_5/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_6/traj_to_state_bw.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_6/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_7/traj_to_state_bw.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_7/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_8/traj_to_state_bw.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_8/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_9/traj_to_state_bw.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_9/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_10/traj_to_state_bw.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_10/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_11/traj_to_state_bw.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_11/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_12/traj_to_state_bw.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_12/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_13/traj_to_state_bw.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_13/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_14/traj_to_state_bw.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_14/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_15/traj_to_state_bw.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_15/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_16/traj_to_state_bw.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_16/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_17/traj_to_state_bw.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_17/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_18/traj_to_state_bw.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_18/trial_fw.tpr),
 Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_19/traj_to_state_bw.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_19/trial_fw.tpr)]

# and look at the first 2 configurations for the transitions to be sure there is one
new_simulation.transitions[:2]

[[Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_0/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_0/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_1/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_1/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_2/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_2/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_3/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_3/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_4/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_4/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_5/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_5/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_6/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_6/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_7/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_7/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_8/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_8/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_9/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_9/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_10/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_10/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_13/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_13/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_15/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_15/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_17/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_17/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_18/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_18/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_19/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame65_from_low_barrier_transition/shot_19/trial_fw.tpr)],
 [Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame75_from_low_barrier_transition/shot_0/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame75_from_low_barrier_transition/shot_0/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame75_from_low_barrier_transition/shot_1/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame75_from_low_barrier_transition/shot_1/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame75_from_low_barrier_transition/shot_2/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame75_from_low_barrier_transition/shot_2/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame75_from_low_barrier_transition/shot_4/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame75_from_low_barrier_transition/shot_4/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame75_from_low_barrier_transition/shot_9/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame75_from_low_barrier_transition/shot_9/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame75_from_low_barrier_transition/shot_10/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame75_from_low_barrier_transition/shot_10/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame75_from_low_barrier_transition/shot_12/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame75_from_low_barrier_transition/shot_12/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame75_from_low_barrier_transition/shot_15/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame75_from_low_barrier_transition/shot_15/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame75_from_low_barrier_transition/shot_16/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame75_from_low_barrier_transition/shot_16/trial_fw.tpr),
  Trajectory(trajectory_files=/homeloc/scratch/aimmd_distributed/Committors_test/frame75_from_low_barrier_transition/shot_19/transition_traj.trr, structure_file=/homeloc/scratch/aimmd_distributed/Committors_test/frame75_from_low_barrier_transition/shot_19/trial_fw.tpr)]]

“Continuation” of the trials that reached only one state

This is a bit stupid, but just to showcase the possiblity to rerun a CommittorSimulation on an existing directory/run with possibly changed states. To this end, we will simply run the CommittorSimulation with only one state (the one we did not reach on the trials we rerun on). We will take the first few trials (started from configurations on the transition that are close(r) to alpha_R) as they should all/mostly have reached the alpha_R state and run a committor continuation with C7_eq as the only target state. This will result in continuing all choosen trial until they reach C7_eq (ignoring that they first reached alpha_R because the new CommittorSimulation does not know about alpha_R anymore).

# take the first 5 starting configurations for continuation, they will mostly have ended up in C7_eq
first_n_starting_configurations_to_take = 5

new_simulation2 = aimmdd.CommittorSimulation(workdir=workdir,
                                             # take only a subset of the original starting configurations
                                             # NOTE: we exclude the first frame because it is already inside alpha_R, i.e. we never
                                             #       started a trajectory for these shots, therefore the continuation will fail...
                                             starting_configurations=starting_confs[:first_n_starting_configurations_to_take],
                                             states=[wrapped_C7_eq], # only C7_eq as target state
                                             engine_cls=async_gmx.GmxEngine,
                                             engine_kwargs=engine_kwargs,
                                             T=mdp["ref-t"][0],
                                             walltime_per_part=0.005,  # run in simulation parts of 18 seconds
                                             n_max_concurrent=8,  # start a maximum of 8 md engines engines (*2 if twoway)
                                             max_retries_on_crash=5,  # maximum number of retries on crash, e.g. 5 means try at most 6 times
                                             # make sure we name the concatenated output trajs differently this time
                                             fname_traj_to_state="continuation_traj_to_state.trr",
                                             # not needed since we dont do twoway, but for completeness
                                             fname_traj_to_state_bw="continuation_traj_to_state_bw.trr",
                                             # not really needed, there can be no transitions with only one state anyway
                                             fname_transition_traj="transition_traj.trr",
                                            )

# since the concatenated output-trajs have different names we can pass overwrite=False (the default)
new_ret = await new_simulation2.reinitialize_from_workdir(overwrite=False)

new_ret

array([[[1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.]],

       [[1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.]],

       [[1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.]],

       [[1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.]],

       [[1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.],
        [1.]]])
